First Stage Valve Plate IR 7100 Compressor Parts

SKU ID: 710004

Description

First Stage Valve Plate IR 7100 Compressor Parts

aircompressorparts.in is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - First Stage Valve Plate IR 7100 Compressor Parts - 710004 - Model for Ingersoll Rand Type 30 Parts from India.

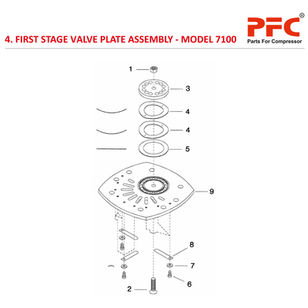

First Stage(Low Pressure) Valve Plate Assembly

Sr.No

Ref. Part Number

Description

Qty

REF

Ass'y, First Stage Valve Plate (see-2-34)

1

4-1

– Nut, Whiz-Lock - 7/16 - 14 Hex

1

4-2

– Bolt Valve

1

4-3

– Plate, Stop - Discharge

1

4-4

– Spring, Valve - Discharge

2

4-5

– Plate, Valve - Discharge

1

4-6

– Screw, Fillister Head - 1/4-20 X 3/8"

9

4-7

– Washer, Belleville - 1/4"

9

4-8

– Valve, Finger

9

4-9

– Plate, Valve Seat

1
